Product Spec.: | IS: 9842:1994, ASTM C-547, EIL:6-44-0002 REV 05 |
Service Temp: | -50°C to 750°C |
Standard Length of each Section: | 1000 mm (1 Mtr) |
Dimension: | ½ inch to 16 inch (Nominal Bore) |
Thickness: | 25mm to 100mm |
Density: | 140 kg/M3 to 160 kg/M3 |
Facing: | FSK & Unfaced |
Packing: | Corrugated Boxes |
Application Field: | Thermal Insulation of Piping & Personnel Protection |

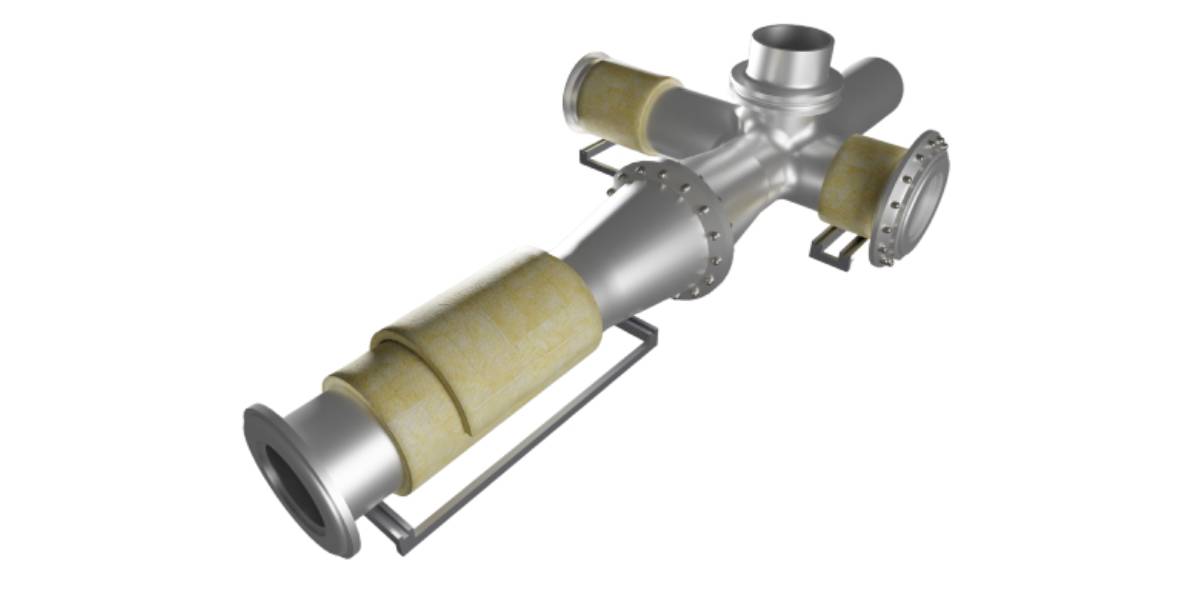

EnSave Pre-formed Pipe Sections are made from stone wool felt with higher binder content. Preformed Pipe Section has excellent water repellent and corrosion control properties. Uniform density and thickness ensure proper application, efficient operation and overall savings to the operating industry. Their excellent fit and high compression resistance means they can be applied in a single layer without any additional spacers. Being concentrically formed and precisely made to fit standard pipe diameters they offer complete 360 degree thermal resistance.
EnSave Stonewool Pipe Sections (SPI) are cylindrical in shaped and in split hinged for easy, snap-on application. These are easy to cut, fit, handle and has high levels of thermal efficiency and strength. It’s combination of density, strength and excellent thermal conductivity at high temperatures offer efficient insulation & reduction of heat losses resulting in operating cost savings. Pipe Sections also provide personnel safety for workers operating in higher temperature areas.
