Product Specifications

Product Spec.: IS: 8183, ASTM C-592, BS:3958 PART-3
Service Temp: -50°C to 750°C
Size: 1640 X 1220 mm (Mattress form) & 4000 X 800 mm (Rolls Form)
Thickness: 25mm to 100mm
Density: 85 kg/M3 to 200 kg/M3
Facing: Galvanized Steel or Stainless-Steel Hexagonal Wire Mesh
Packing: HDPE Bags OR Shrink Wrapped
Application Field: Boilers & Industrial Equipments, Ducts, Tanks,Vessets, Large Dia Pipes etc

EnSave Stone Wool Light Resin Bonded Mattresses or Rolls (LRB) are made from natural rocks & stones by melting into fibres and binding them with thermosetting binders to form the shape of mattresses or rolls. Manufacturing is performed under highly controlled parameters to ensure stable fibre distribution for even density and thickness. These mattresses are also added with speciality additives for water repellence and corrosion control. EnSave Stonewool LRB Mattress/Rolls are flexible, backed with wiremesh for support these mattresses are most easy to use, it can be easily curved, wrapped on equipment’s, pipes or irregular surfaces. LRB mattress are most suitable for wide range of operating temperature ranging for-50 to 750 degree cel. Insulation saves costly fuel & energy consumption, overall improving industrial efficiency & operations. Added with water repellent and corrosion control additives our products increase life cycle of an industrial complex. It also gives a safety layer for personnel protection working in high temperature areas by reducing surface temperature.

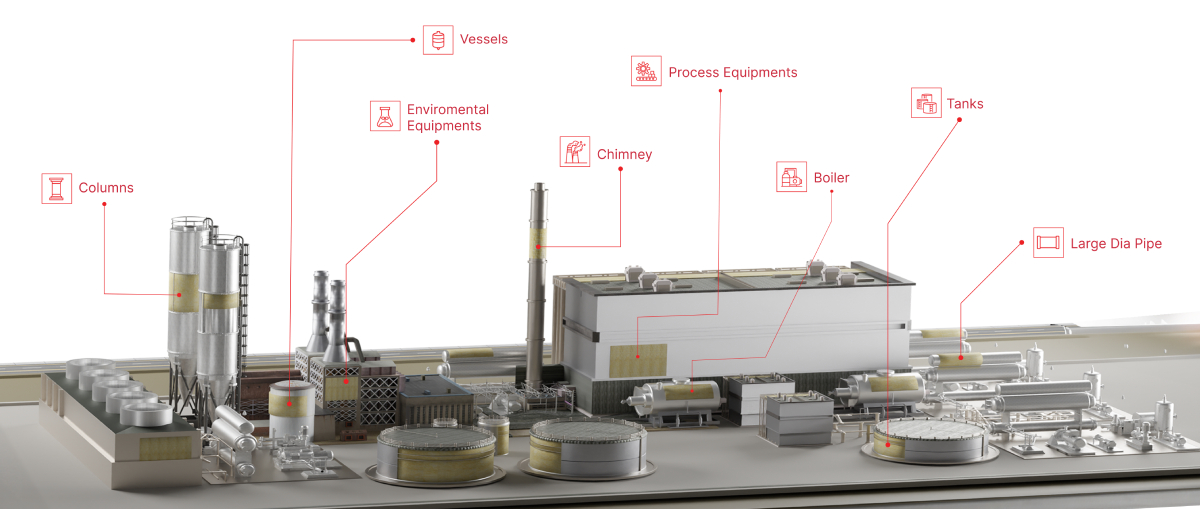

POWER PLANTS, REFINERIES, PROCESS BOILERS, ESP’s, DENOX FGD, SCR, CEMENT, PAPER, CHEMICAL INDUSTRY, STEEL MILL, FERTILIZER, SUGAR MILLS

Technical Parameters

High Density

Semi Flexible Mat

Fewer Joints and Less Wastage

Low Binder

Customized Length
